Detailed introduction

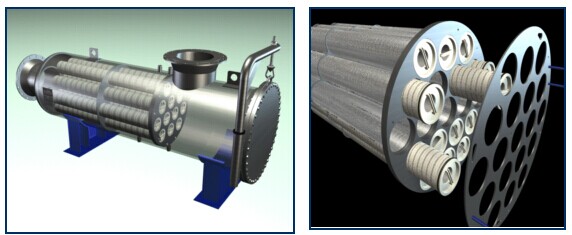

Huakai TM - D large flow filterUse of foreign high-quality filter, combined with many customers to filter case, for the optimal design and manufacturing, in compact filter system design realize the maximization of the flow of the compared with traditional filtration system, big flow filter with more unique advantages.
Large flow, high precision
Filter shell USES imported PALL company, 3 m company in the United States, as well as domestic folding large flow filter. Work flow of the single element can reach 110 t/H. Filtration precision scope in 1-70 - um, absolute filtration efficiency reached 99.9%, high precision, high efficiency, high flow, deep filter, using cycle is long, etc. Cone hole shape filter material set in a high carrying capacity, and low pressure drop, and the absolute accuracy and integrity to ensure the water quality of effluent. The equipment requirements through the filter of water temperature shall not exceed 80 ℃.
Technical parametersLarge flow, high precision
Filter shell USES imported PALL company, 3 m company in the United States, as well as domestic folding large flow filter. Work flow of the single element can reach 110 t/H. Filtration precision scope in 1-70 - um, absolute filtration efficiency reached 99.9%, high precision, high efficiency, high flow, deep filter, using cycle is long, etc. Cone hole shape filter material set in a high carrying capacity, and low pressure drop, and the absolute accuracy and integrity to ensure the water quality of effluent. The equipment requirements through the filter of water temperature shall not exceed 80 ℃.
Product size: DN40-800
Pressure of products: 0.6-6.4MPa
Product material: cast steel, stainless steel, alloy steel, etc
Production standard: mechanical standard national standard GB, JB, chemical standards HG, API, ANSI, DIN, JIS, JPI, British standard BS production
The valve body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20 #, # 25, forged steel, A105, F11, making, stainless steel, 304 l, 304 l, 304, 304, chrome molybdenum steel, low temperature steel, titanium alloy steel, etc
Pressure of work: 1.0Mpa-50.0Mpa
Working temperature: -196℃-650℃
Connection mode: internal thread, external thread, flange, welding, butt welding, socket welding, card sets, clamp
Drive mode: manual, pneumatic, hydraulic, electric
巧妙設(shè)計
■ Filter the installation handle accord with human body engineering mechanics principle, save filter replacement time, remove convenient quickly
■ O-rings cartridge seal, put an end to sliding sideways, rigor, ensure system play a self-tightening effect
■ Out into the flow direction in medium, greatly improve the efficiency of filtering
■ The unique nozzle design, safe and convenient to use
■ Maximum allowable import and export pressure difference:0.35MPa
■ High performance, high precision filter, satisfy clients' demand for large flow filtration
Filter characteristics
40inchFlow rate can be up to90T/H
High performance filtration material, the unique folding design
■ O-rings cartridge seal, put an end to sliding sideways, rigor, ensure system play a self-tightening effect
■ Out into the flow direction in medium, greatly improve the efficiency of filtering
■ The unique nozzle design, safe and convenient to use
■ Maximum allowable import and export pressure difference:0.35MPa
■ High performance, high precision filter, satisfy clients' demand for large flow filtration
Filter characteristics
40inchFlow rate can be up to90T/H
High performance filtration material, the unique folding design
Carrying amount of10Kg，F(xiàn)ilter material through the FDA certification
Filtration precision:1，2，5，10，15，25，40um
60inchTraffic can be dada120T/H，F(xiàn)iltration efficiency:99.9%
Filtration precision:1，2，5，10，15，25，40um
60inchTraffic can be dada120T/H，F(xiàn)iltration efficiency:99.9%
