Detailed introduction

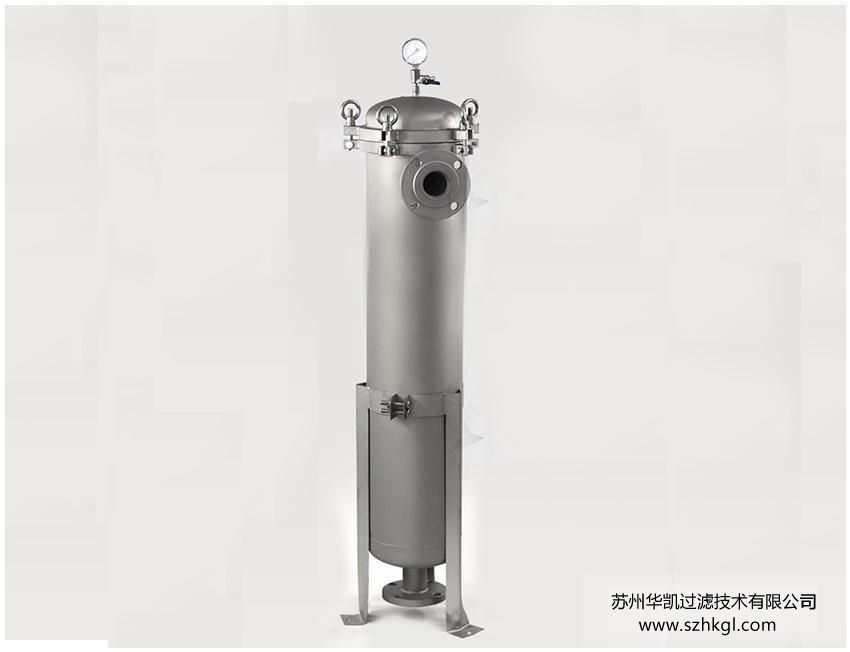

HOOP TYPE Anchorear type bag filterHuakai HOOP TYPE filter adopts convenient portable HOOP structure, applicable to industrial without seal, the risk-free low voltage application, etc.
304 and 316 l materials manufacturing, high corrosion resistance, years of operation, can still maintain a stable performance.
Excellent performance
★ Standard bag interface, installation form of diversification
★ Quick opening eyebolt, convenient and quick opening and closing
★ Choose appropriate filter bag according to the flow
★ Can be adjusted according to the field for quick installation size
★ Health level polishing can meet customer demanding requirements
Technical parameters
referenceHG21637-91、GB150-2011Design, manufacture and acceptance
Diameter specifications:1-2” Sealing gasket: silicone, nitrile butadiene rubber, four fluorine rubber
Design pressure:1.6MPa Interface form: screw, clamp, flange
Design temperature:120℃ Filtration precision:0.5um-800um
Surface treatment: inside and outside shell sand blasting or polishing Filter bag type:1＃ 2＃
The flange standard:HG GB SH HGJ JB ANSI JIS Outlet specifications:1/4”
Filter bag material: polyester, polypropylene, nylon, ptfe, glass fiber
The filter size
| Model | A （mm） | B （mm） | C （mm） | D （mm） | F （mm） | In/Out |
| SGD—1B | 500 | 380 | 700 | ?219 | ?170 | 1"—4" |
| SGD—2B | 700 | 720 | 1050 | ?219 | ?170 | 1"—4" |
| SGD—3B | 350 | 190 | 430 | ?114 | ?97 | 3/1"—2" |
| SGD—4B | 500 | 340 | 580 | ?114 | ?97 | 3/4"—2" |
