Detailed introduction

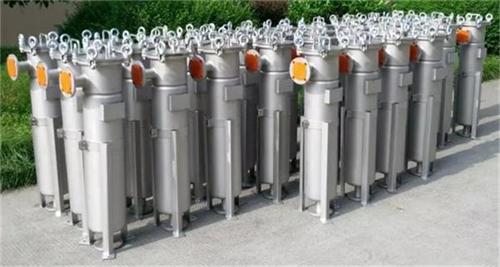

Huakai standard bag filterHuakai standard bag filter, all parts are standard type, filter production according to production line, can also according to the pressure vessel GB150 standard production.
Excellent performance
★ Choose appropriate filter bag according to the flow
★ Quick opening eyebolt, convenient and quick opening and closing
★ Health level polishing can meet customer demanding requirements
★ Can be adjusted according to the field for quick installation size
★ Standard bag interface, installation form of diversification
referenceHG21637-91、GB150-2011Design, manufacture and acceptance
The flange standard:HG GB SH HGJ JB ANSI JIS
Interface form: screw, clamp, flange
Diameter specifications:1-1/2”
Outlet specifications: 1/4”
Filter bag type:1＃ 2＃
Filtration precision:0.5um-800um
Design pressure:1.6MPa
Design temperature:120℃
Surface treatment: inside and outside shell sand blasting or polishing
Sealing gasket: silicone, nitrile butadiene rubber, four fluorine rubber
Filter bag material: polyester, polypropylene, nylon, ptfe, glass fiber
Application field
1. Electroplating and electronics industry: all kinds of plating solution and water filtration
2. Pharmaceutical industry: All kinds of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration
3. Mechanical processing industry: All kinds of cutting fluids, cooling fluid and fluid filtration
4. Edible oil and soap industry: Cooking oil polishing purification materials, soap and water filtration
5. Oil and gas industry: Amine fluid desulfurization,Flux filtration dehydration, oil field water injection, completion fluid filtration
6. Textile, printing and dyeing, paper making industry: dope, dye, flux, water filter, additives, adhesives
7. Petroleum and chemical industry, oil and various kinds of oil, viscose, chemical fiber manufacturing process all kinds of filter solution
8. Car coating, paint, paint industry, latex paint, electrophoretic paint, pretreatment liquid, paint, paint raw material and solvent filtration
9. Food and beverage industry, beer, wine, fruit wine, wine, white wine, rice wine, fruit juices, bottled water, tea drinks, soymilk, syrup, dairy products, food additives, such as clarification processing and CIP water filtration
The filter size:
| Model | A （mm） | B （mm） | C （mm） | D （mm） | F （mm） | In/Out |
| SGD—1B | 500 | 380 | 700 | ?219 | ?170 | 1"—4" |
| SGD—2B | 700 | 720 | 1050 | ?219 | ?170 | 1"—4" |
| SGD—3B | 350 | 190 | 430 | ?114 | ?97 | 3/1"—2" |
| SGD—4B | 500 | 340 | 580 | ?114 | ?97 | 3/4"—2" |
